簡介：

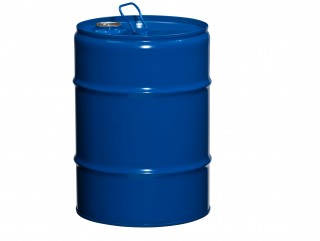

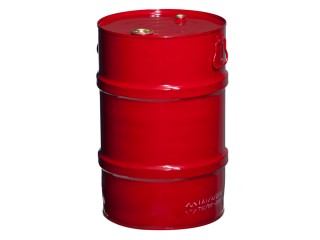

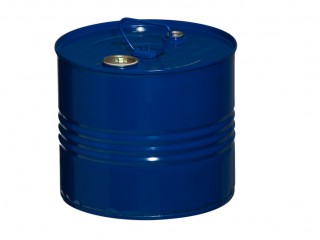

Closed-Head Steel Pail : Bung openings for liquid filling and ventilation.Carring handle can be added upon request.We also have Stainless Drums for small sizes.
| ● |
Raw material complies with CNS-9278/JISG-3141/ISO-3574 |
| ● |
Designed, manufactured by CNS-9446 standard |
| ● |
Complies with IMO regulations and are UN approved. |
| ● |
Containing applications : Petrochemical related products (Resolvent,Resin,Lubricant),
Oil,Juice,Honey,Powder etc.
|
| ● |
Steel thicknesses range from 0.5mm to 0.8mm(available upon request). |
| ● |
Supplied with rust-inhibitor Interior or chemical-resistant epoxy-phenolic lining. |
Specifications：
| |
Product |
Dimensions(mm) |
| T |
ID |
H |
| 1 |
20L Closed-Head Steel Pail |
0.5~0.8 |
Ø326±3 |
285±5 |
| 0.5~0.8 |
Ø280±3 |
417±5 |
| 2 |
30(35)L Closed-Head Steel Pail |
0.5~0.8 |
Ø330±3 |
440±5 |
| 3 |
50L Closed-Head Steel Pail |
0.5~0.8 |
Ø380±3 |
500±5 |
| 4 |
60L Closed-Head Steel Pail |
0.5~0.8 |
Ø380±3 |
600±5 |
| 5 |
100L Closed-Head Steel Pail |
0.5~0.8 |
Ø435±3 |
820±5 |
Listed above are for the primary customer commonly usage. We can also customize the drum
according to customer’s requirement from 20L ~ 120L.
|
